PRODUCT DESCRIPTION
Outside Diameter | No. of Loops | Standard Length per Coil | Razor Type | Notes |
450mm | 33 | 7M-8M | CBT-60, 65 | Single Coil |
500mm | 56 | 12M-13M | CBT-60, 65 | Single Coil |
700mm | 56 | 13M-14M | CBT-60, 65 | Single Coil |
960mm | 56 | 14M-15M | CBT-60, 65 | Single Coil |
450mm | 56 | 8M-9M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
500mm | 56 | 9M-10M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
600mm | 56 | 10M-11M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
600mm | 56 | 8M-10M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
700mm | 56 | 10M-12M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
800mm | 56 | 11M-13M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
900mm | 56 | 12M-14M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
960mm | 56 | 13M-15M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
980mm | 56 | 14M-16M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
Model | Thickness | Wire Diameter | Length | Width | Spacing |
BTO-10 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 13mm | 26mm |
BTO-12 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 15mm | 26mm |
BTO-18 | 0.5±0.05mm | 2.5±0.1mm | 18±1mm | 15mm | 33mm |
BTO-22 | 0.5±0.05mm | 2.5±0.1mm | 22±1mm | 15mm | 34mm |
BTO-28 | 0.5±0.05mm | 2.5±0.1mm | 28±1mm | 15mm | 34mm |
BTO-30 | 0.5±0.05mm | 2.5±0.1mm | 30±1mm | 18mm | 34mm |
CBT-60 | 0.6±0.05mm | 2.5±0.1mm | 60±1mm | 32mm | 96mm |
CBT-65 | 0.6±0.05mm | 2.5±0.1mm | 65±1mm | 21mm | 100mm |

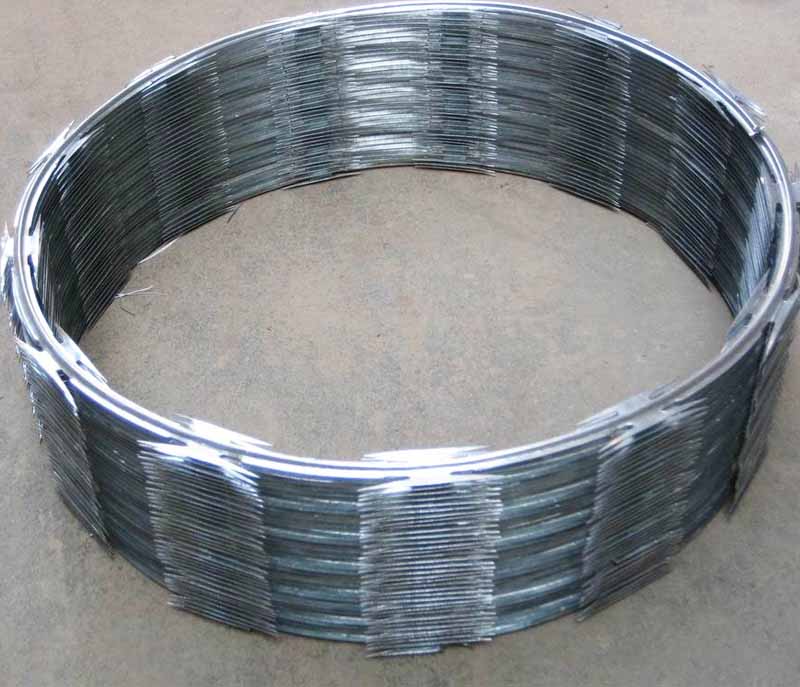

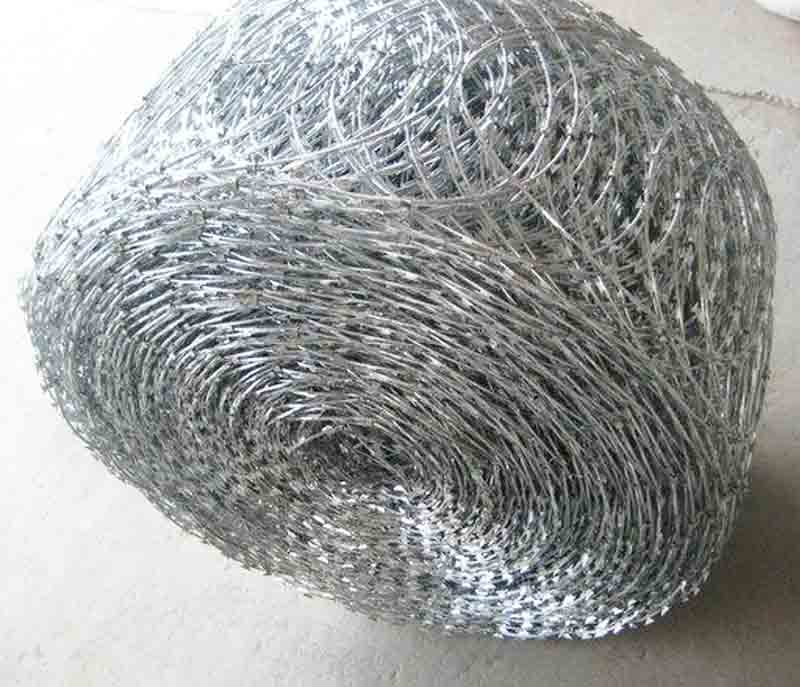

Concertina wire is formed in large coils which can be stretched like a concertina. Rigid and sharp blade frightens or hurt any person or animal that want to go through concertina wire fence.
Concertina razor wire is available in galvanized, PVC coated and stainless steel wire materials. Broadly speaking, galvanized razor wire is very effective and relatively cheap.
Concertina wire is supplied in single coils, double coils or crossed spiral coils. Besides coiled concertina wire, straight razor wire is also provided, which can be welded to fences.
Applications: Fencing enhancement, wall enhancement, border security, military base security.
Barb tape, also named as razor tape, concertina wire or razor wire, is manufactured from mild steel wires and consist of a continuous steel strip that is enclosed with sharp blades. All coils are clipped together to obtain a stable and homogeneous network. It is an alternative but has higher security grade than the barbed wires.
Barb tape is regarded as effective deterrent for intruders and it adds an anti-climb quality to almost all security fences and black walls.
An effective deterrent to intruders and prevent them from climbing the fence or walls.
Various materials and corrosion resistance coatings guarantee the long lifetime.
Simple installation and no need of complex machines and tools.
A large variety of configurations and materials is available on specific demand providing different security level for your projects.
Flat wrap razor wire fabricated by single strand razor wire is clipped to wires or panels to create flat sheets. It is always used to upgrade security for residential fences, brisk and precast concrete walls, chain link fence, perimeter fence and gates. Either medium or short blade is available for your special purpose.
Six reasons of choosing our flat razor wire:
No overhang structure will not hurt innocent bystanders.
Neat appearance without overhang.
Optimum choice for limited space where also needs high security.
Available as a free standing fence.
Standard sizes are provided and custom sizes on special order.
Easy installation.

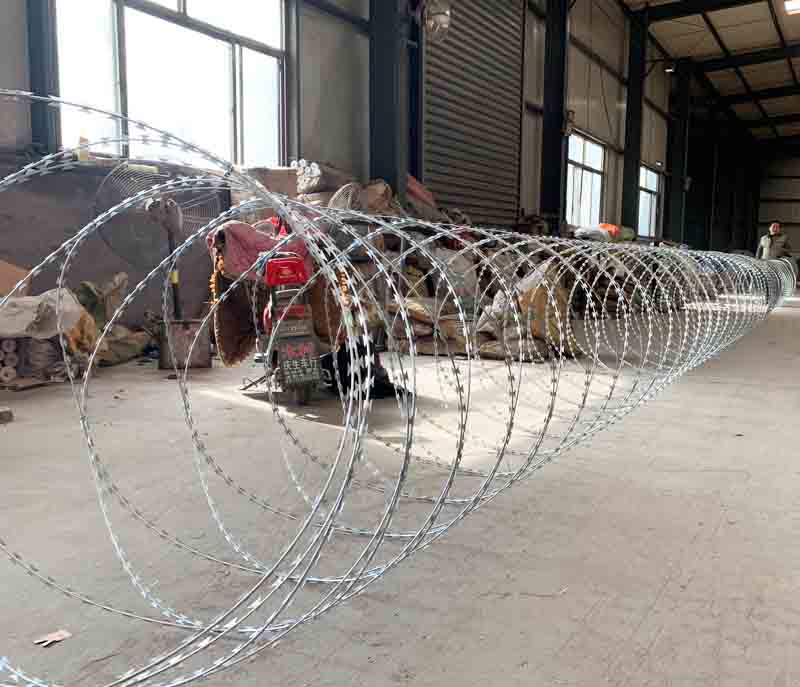

Coil razor wire has many circles. Tie every two adjacent circles by clips, and a spiral razor wire is created. The clips one circle needed is depended on the diameter of the circle. Generally speaking, the diameter of an opening circle would be 5-10% less than its original size.
Circles of spiral razor wire cross each other, leaving no space for a person or middle-sized animals. Spiral razor wire improves security level. Hence, it is widely used in boundary, residential and commercial places, prison and institutions.
Galvanized razor wire has good resistance to all weathers, corrosion and acid rains. For years, silvery appearance will remain for a long time.

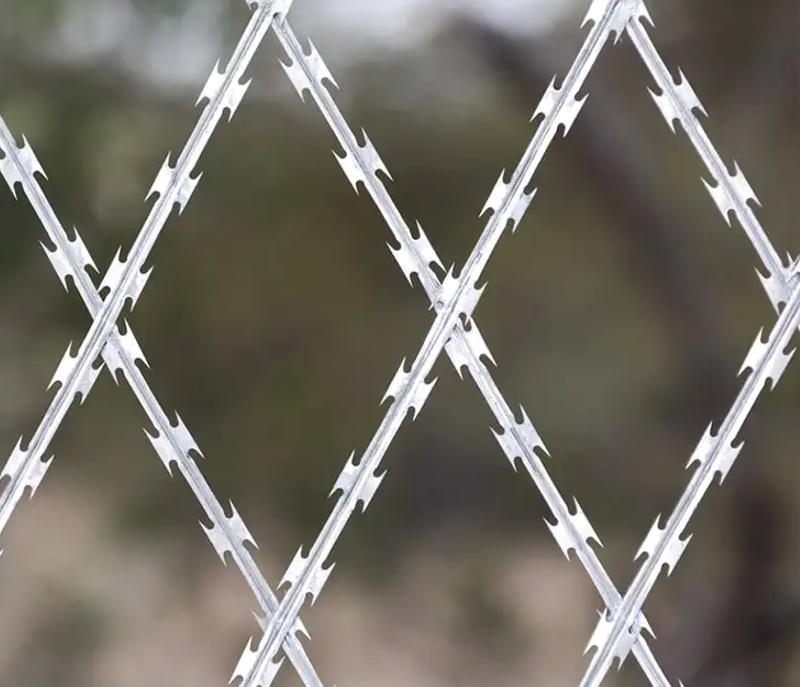

Welded razor wire mesh is fabricated by welding straight razor wire in square or diamond profiles. This security fence is designed to prohibit entry and climbing for its sharp blades.
Welded razor mesh is often used as protective fence for factories, gardens, prisons and properties, banks and other places where need high security. Provided in rolls or panels.
Features of welded razor wire fence:
Non-climbing.
Robust welded structure.
Zinc coating improve corrosive resistance.
Available in square and diamond profile.
Galvanized razor wire has thick zinc coating to resist acid rains and all weathers. Compared with naked steel razor wire, galvanized wire is very durable and will not rust.
Galvanized razor wire often combines with chain fences, field fence, welded wire fence, walls and gates to provide high security. Widely used in residential, commercial, military, garden, boundary and prisons.
Advantages of galvanized razor wire:
Zinc coating protects inside steel wire;
Sharp blades scares enemies away;
Silvery appearance warning people not climbing.
Related cheap price
Razor wire Specifications:
BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.
Stainless steel concertina wire features high tensile strength, excellent corrosive resistance and durability. In addition, stainless steel concertina coil will never tarnish and remain shining appearance even after several years' usage.
Stainless steel concertina wire often cooperates with chain link fence, welded fence or field fence, walls and gates. It effectively upgrades the security level and protects your property and family from threatening.
Never rust in all weathers.
Sharp blades will not become blunt.
Excellent resistance to alkali and acid elements.
No maintenance after installation.
Shining appearance gives warning signs to unwanted people.
Sharp blades.
Economy cost in the long term.
